Gear Metrology

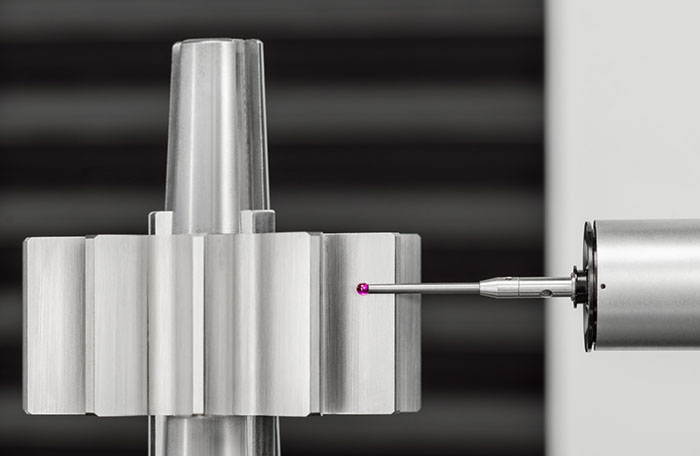

Gear measuring system

Gear measuring system

Gear measurement for the efficient inspection of different gears

Module range: 0.4 to 32

Workpiece diameter: Ø 175 mm to Ø 3'000 mm

Surface roughness test

Direct corrective transmission to honing or grinding machine


For gear measuring systems, we rely on Gleason technology solutions: machine, software, clamping devices.

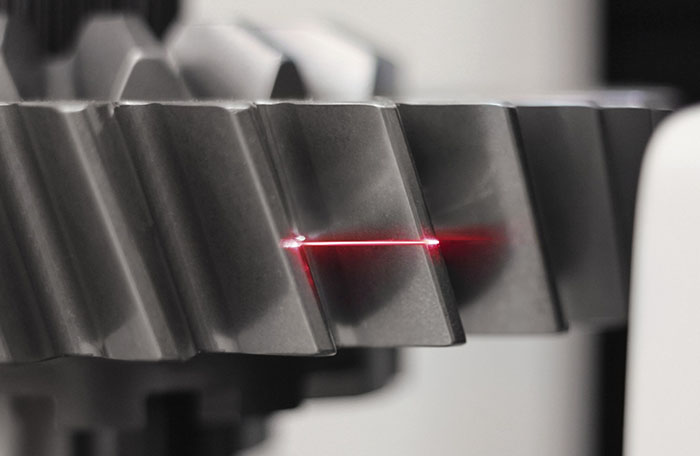

Two-flank testing with laser

Two-flank testing with laser

Double flank rolling test of inner- and outer gears for analytical inspection

Module range: 0.4 to 10

Workpiece diameter: Ø 200 mm to Ø 300 mm

Optical pitch and profile check


For double flank testing, we rely on Gleason technology solutions: machine, software, fixtures, test equipment.
